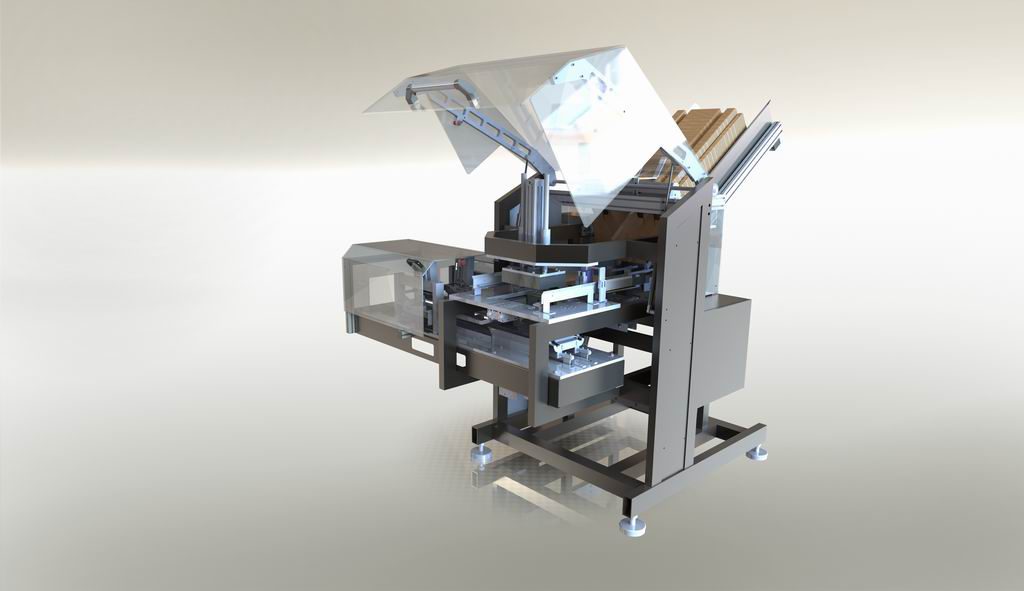

Tray Erector Model WS
Compact and Fast Tray Erecting Machine with Ergonomic Design
The Prepac WS is a compact and fast machine designed for erecting and gluing smaller corrugated cardboard trays, with or without stacking tabs. Trays with stacking tabs are erected in two steps. The machine can be reconfigured for a wide range of box constructions and formats.
The slanted ergonomic sheet magazine tilts down for loading, even during operation, making it accessible for shorter operators.
The Prepac WS is equipped with hot melt. The adjustment of the glue bead positions and lengths is simple. The machine’s movements are pneumatic, controlled and monitored via contactless sensors by a PLC.
- Floor space: 2100×2000 mm
- Tray height: 40-70 mm
- Height: 1950 mm
- Tray length: 150-260 mm
- Output height: 800 mm
- Tray width: 140-180 mm
- Weight: 500 kg
- Capacity: approx. 20 units/min
- Air consumption: 1000 liters/min at 6 bar
- Power: 380v, 50Hz
