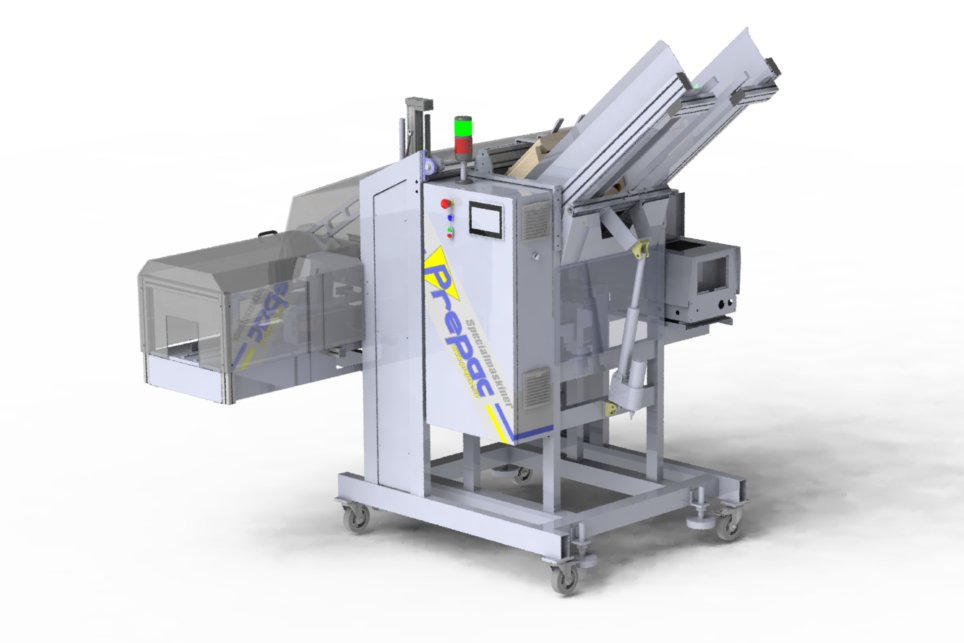

Tray Erector Model WS-E
Energy-Efficient Servo-Driven Box Erecting and Gluing Machine
Prepac WS-e is a servo-driven machine for erecting and gluing open corrugated cardboard boxes, with or without stacking tabs. The electric drive makes it highly energy-efficient compared to fully pneumatic machines.
The slanted ergonomic sheet magazine tilts down for loading, even during operation, making it accessible for shorter operators.
The Prepac WS-e is equipped with hot melt. Adjusting the position and length of the glue beads is simple. The machine’s movements are pneumatic, controlled and monitored via contactless sensors by a PLC.
- Floor space: 2100×2000 mm
- Tray height: 40-70 mm
- Height: 1950 mm
- Tray length: 150-260 mm
- Output height: 800 mm
- Tray width: 140-180 mm
- Weight: 500 kg
- Capacity: up to 40 units/min
- Air consumption: 200 liters/min at 6 bar
- Power: 380v, 50Hz
