Tray Erector Model 6K
Revolutionizing Pallet Cover Assembly with Efficiency and Durability

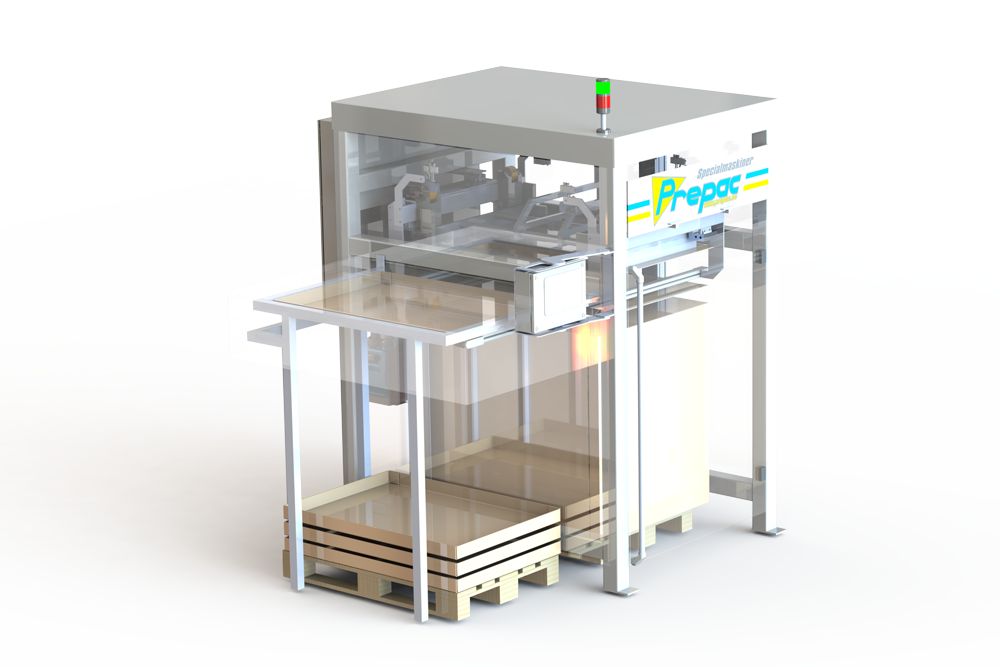

The Prepac 6 K is a new machine designed for the automatic erection and gluing of open corrugated cardboard boxes. Specifically engineered to handle boxes with bottom dimensions matching that of an EUR pallet, so it easily can fit over the products as a pallet cover. The machine efficiently retrieves its sheets directly from a pallet. With all the sheet-handling movements driven by servos, the machine ensures high operational availability, low energy consumption, and exceptional throughput capacity.
Built with a robust welded frame and components made from electro-galvanized steel, aluminium, and POM, the Prepac 6K is designed for durability and long-lasting performance. Polycarbonate safety shields protect operators during operation, ensuring safety at all times.
Once the boxes are assembled, they are automatically placed onto a pallet, making it easy for the operator to retrieve them for further processing.
The machine features a user-friendly HMI (Human Machine Interface) with multiple functions.
Some examples include:
- Machine speed (set the percentage of how fast the machine should operate)
- Weekly timer for glue on/off
- Statistics: Current speed, boxes processed, etc.
- Adjustment of glue positions
- Machine status
- Alarm menu
- Automatically retrieving sheets from pallet
- Compact design
- Energy-efficient
- Capacity: From 25 seconds per box to 19 seconds per box
- Floor space: 2325X2390 mm
- Height: 2360 mm
- Machine weight: 750 kg
- Power: 400v, 3-phase, 50Hz
- Height: 60–90 mm
- Length: 1150–1220 mm
- Width: 750–820 mm
